Ultra Mass Series | Batch Control Systems (Electric)
Ultra Mass Series
STANDARD’s Ultra Mass Batch Control is an innovative system designed for dosing applications from drums, Tote® tanks and kettles. Simply dial in your desired volume or weight and the Ultra Mass BCS will deliver a preset dose of product – virtually hands-free. The system’s components are 3A Certified, ensuring the highest quality product suitable for the food processing, pharmaceutical, dairy and biotech industries.
Common Applications
- Sauces
- Creams
- Dairy Products
- Shampoo & Conditioner
- Pharmaceutical Materials
- Pie Fillings
Features
- 3A (TPV) Certified Components
- FDA Compliant Materials
- Low Shear Design
- Easy to Clean
- Tri-clamp® Fittings
- Interface Capabilities: HART, PROFIBUS, PA/DP, FOUNDATION FIELDBUS
- Suitable for Conductive & Non-Conductive Solutions
- Quick Setup Menus for In-field Commissioning
Technical Data
| Design: | Progressive Cavity / Positive Displacement |
| Motor Drive: | TEFC (IP54), Variable Speed |
| Immersion Length: | 39” (1000 mm) |
| Wetted Components: | SS316, PTFE & SiC |
| Pump Finish: | 32 Ra |
| Inlet/Discharge Size: | 2" (51 mm) / 1.5" (38 mm) |
| Viscosity Range: | |
| P/N: 8500 (110v), 8501 (220v) P/N: 8513 (110v), 8514 (220v) |
1-10,000 cps (mPAS) 10,000-25,000 cps (mPAS) |
| Max. Discharge Pressure: | |
| P/N: 8500 (110v), 8501 (220v) P/N: 8513 (110v), 8514 (220v) |
43 psi (3 bar) based on water 87 psi (6 bar) based on water |
| Max. Flow Rate: | |
| P/N: 8500 (110v), 8501 (220v) P/N: 8513 (110v), 8514 (220v) |
8 GPM (30,2 LPM) based on water 3 GPM (11,3 LPM) based on water |
| Duty Cycle: | Intermittent (30 Min. Intervals) |
| System Weight: | 58 lbs (26 kg) |
| Max. Temperature: | 185° F (85° C) |
| Max. Solid Size: | .25" (6 mm) |
| Mechanical Pump Seal: | SiC / Viton® / SiC |
| Metering Principle: | Coriolis Mass Flow Technology |
| Check Valve: | 316 Stainless Steel |
| System Accuracy: | +/– .30% of Reading |
| Pump and meter is constructed with FDA compliant materials; however, the system does not have FDA certification. | |
| ®Viton is a registered trademark of DuPont Dow Elastomers. | |
Model Number
| Package P/N | Motor/ Voltage | Wetted Parts | Max Viscosity CPS (mPAS) | Immersion Legnth |
| Ultra Mass Batch Control System | ||||
| 8500 | TEFC / 110-120V | SS316, Teflon, SiC | 10,000 | 39" (1000 mm) |
| 8501 | TEFC / 220-240V | SS316, Teflon, SiC | 10,000 | 39" (1000 mm) |
| 8513 | TEFC / 110-120V | SS316, Teflon, SiC | 25,000 | 44" (1120 mm) |
| 8514 | TEFC / 220-240V | SS316, Teflon, SiC | 25,000 | 44" (1120 mm) |
| Ultra Mass Batch Control System Bagliner Series | ||||
| 8500BL | TEFC / 110-120V | SS316, Teflon, SiC | 10,000 | 39" (1000 mm) |
| 8501BL | TEFC / 220-240V | SS316, Teflon, SiC | 10,000 | 39" (1000 mm) |
| 8513BL | TEFC / 110-120V | SS316, Teflon, SiC | 25,000 | 44" (1120 mm) |
| 8514BL | TEFC / 220-240V | SS316, Teflon, SiC | 25,000 | 44" (1120 mm) |

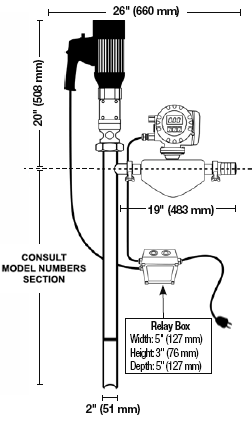

Dimension
