Flow Meter & Pump System (Air)
Flow Meter & Pump System
Standard’s Flow Meter & Pump System is engineered to dispense and meter materials from drums, Tote® tanks and kettles. The system includes a 3A Sanitary Transfer Pump in addition to a 3A Turbine Flow Meter. The meter offers a truly hygienic design and accurate performance. A two-piece design enables operators to quickly disassemble and clean internal components. The proven Flow Meter & Pump System is an excellent choice for metering low viscosity liquids.
Common Applications
- Milk
- Filtered Juice
- Brine Solutions
|
|
Features
- Tri-clamp® Fittings
- 3A Certification
- Turbine Paddle Wheel
|
- Viscosity to 100 cps (mPas)
- Easy to Clean Design
- Remote Mount Meter Display
|
Technical Data
| Pump Design |
Centrifugal / Turbine Meter |
| Wetted Parts |
SS316L, PTFE & Buna |
| Finish |
32 Ra |
| Motor Drive |
1/2 HP (370 W) Air |
| Discharge |
1" (25 mm) Hose Barb, 1.5" (38) Tri-clamp® |
| Max. Viscosity |
100 cps (mPas) |
| Max.Flow Range |
22 GPM (83 LPM) based on water |
| Duty Cycle: |
Continuous |
| System Weight |
16 lbs (7 Kg) |
| Max. Temperature |
250° F (121° C) |
| System Accuracy |
+/– 0.5% (+/– .10% Repeatability) |
| Meter Power Supply |
12 V / DC |
| Bag Liner Series: |
Optional pump intake design available for applications with hygienic liners |
| Note: Pump and meter is constructed with FDA compliant materials; however, the system does not have FDA certification. |
| ®Viton is a registered trademark of DuPont Dow Elastomers. |
Model Number
| Package P/N |
Motor/ Voltage |
Wetted Parts |
Max Viscosity
CPS (mPAS) |
Immersion Legnth |
| 8872 |
1/2 HP (370 W) Air |
SS316L, PTFE, Buna |
100 |
39" (1000 mm) |
| 8875 |
1/2 HP (370 W) Air |
SS316L, PTFE, Buna |
100 |
47" (1200 mm) |

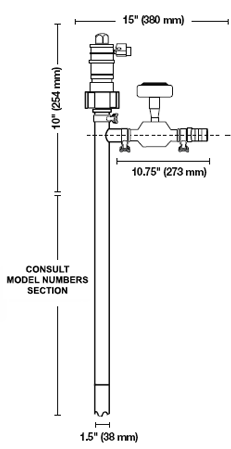

Dimension
