SP-8800 Sanitary Pump Series
Hygienic Design Enables Operators To Disassemble, Clean and Sanitize
Standard’s SP-8800 Series Sanitary Centrifugal Pumps offer the ideal solution for transferring Dairy Products, Pharmaceuticals, Juices, Concentrates, Beer, Wine, and Cosmetic Fragrances from barrels, kettles and Tote Tanks®. The SP-8800 Series pumps are 3A certified and incorporate a hygienic design that enables operators quickly to disassemble and sanitize.Designed for applications where maximum flow rate is required.
Common Applications
- Juices
- Concentrates
- Personal Care Products
- Pharmaceuticalss
- Beer
- Wine
- Cosmetic Fragrances

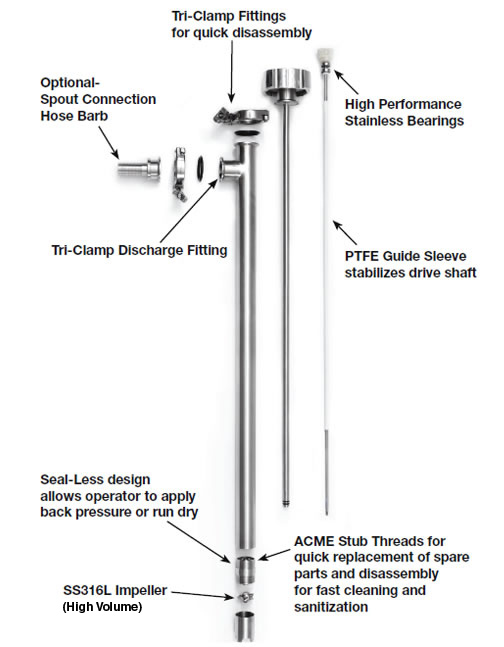

Pump Component Features
Features
- 3A Certified (TPV)
- Hygienic Design
- Easy to Clean
- Tri-Clamp Fittings
- Light Weight & Portable
- Variable Speed Electric & Air Motors
- Runs Dry
Technical Data
| Immersion Length: | 39" (1000 mm) Drums 47" (1200 mm) Totes, Tanks & Kettles |
| Wetted Components: | SS316L, PTFE & Buna |
| Discharge Size: | 1.5" (38 mm) Tri-Clamp Connection |
| Max. Viscosity: | 1,000 cps (mPAS)* |
| Max. Discharge Pressure: | 40 psi (2,8 bar) |
| Max. Flow Rate: | 35 GPM (132 LPM) |
| Pump Weight: | 11 lbs (5 kg)m |
| Max. Temperature: | 175° F (80° C) |
| Pump is constructed with FDA compliant materials; however , the system does not have FDA certification |
|
| Pump is intended for intermittent use when operating at maximum viscosity. | |

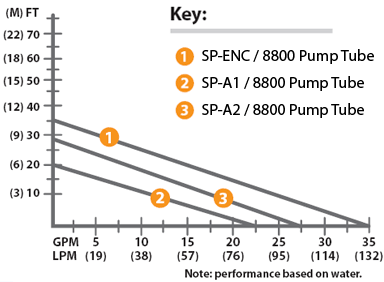

Flow Curves
