SP-8600 Sanitary Pump Series

Hygienic Design Enables Operators To Disassemble, Clean and Sanitize

Standard Pumps’ SP-8600 Series Sanitary Centrifugal Pumps offer the ideal solution for transferring Juices, Concentrates, Beer, Wine, and Cosmetic Fragrances from barrels, kettles and Tote Tanks®. The SP-8600 Series pumps incorporate a proven Hygienic design and FDA Compliant Materials of construction (CFR 21.177) insuring a safe, robust and efficient Sanitary Solution. Designed for applications where maximum flow rate is required.

Common Applications

  • Juices
  • Concentrates
  • Personal Care Products
  • Pharmaceuticalss
  • Beer
  • Wine
  • Cosmetic Fragrances

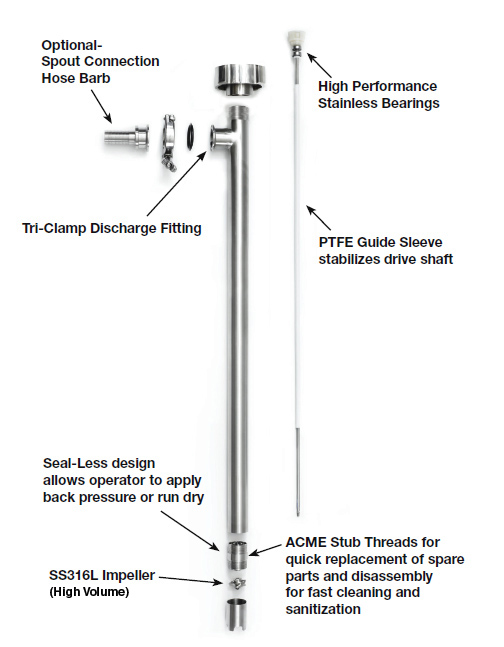

Pump Component Features

Features

  • FDA Compliant Materials of Construction
  • Hygienic Design
  • Easy to Clean
  • Tri-Clamp Fittings
  • Light Weight & Portable
  • Variable Speed Electric & Air Motors
  • Runs Dry

Technical Data

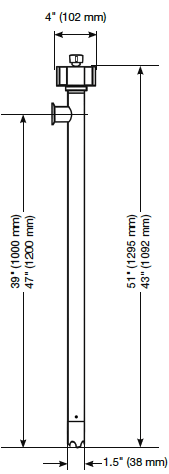

Immersion Length: 39" (1000 mm) Drums
47" (1200 mm) Totes, Tanks & Kettles
Wetted Components: SS316L, PTFE & Buna
Discharge Size: 1.5" (38 mm) Tri-Clamp Connection
Max. Viscosity: 1,000 cps (mPAS)*
Max. Discharge Pressure: 43 psi (2,9 bar)
Max. Flow Rate: 35 GPM (132 LPM)
Pump Weight: 11 lbs (5 kg)
Max. Temperature: 175° F (80° C)
Pump is constructed with FDA compliant materials; however, the
system does not have FDA certification.
Pump is intended for intermittent use when operating at maximum viscosity.

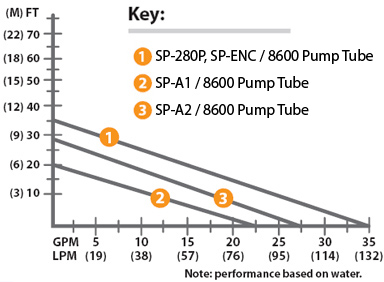

Flow Curves
