Ultra Mag Series

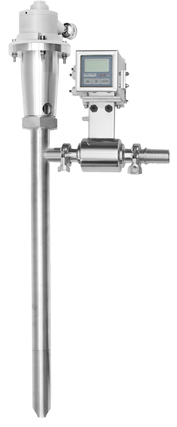

Standard’s Sanitary Batch Control System isengineered for bulk, high frequency dosing and filling operations from drums, Tote® tanks and kettles – virtually hands-free. The air systems are ideal for high frequency, continuous duty applications. This system utilizes a non-invasive Full Bore Magmeter for flow / volume measurement. Simply dial in desired volume, press enter, and the Sanitary Batch Control delivers a preset volume of material within .05% accuracy. The system is an excellent solution for conductive food products, pharmaceuticals, and cosmetic materials.
Common Applications
- Lotions
- Shampoo
- Chocolate
- Pie Fillings
- Juice Concentrates
- Brine
- Pharmaceuticals
- Tomato Paste
Features
- 3A Certification
- Large Graphic Display
- Tri-clamp® Fittings
- Low Shear Design
- Non-Invasive Measurement
- Easy To Clean Design
- Multi-language Display
- Standard Or Metric Units Of Measure
- Measures Volume
Technical Data
| Design: | Progressive Cavity / Positive Displacement |
| Immersion Length: | 39” (1000 mm) |
| Wetted Components: | 316SS & PTFE |
| Pump Finish: | 32 Ra |
| Motor Drive: | Air, 2 HP (1,5 KW) |
| Discharge Size: | 1.5" (38 mm) |
| Viscosity Range: | |
| P/N: 8340 (110v), 8341 (220v) P/N: 8350 (110v), 8351 (220v) |
1-10,000 cps (mPAS) 10,000-25,000 cps (mPAS) |
| Max. Discharge Pressure: | |
| P/N: 8340 (110v), 8341 (220v) P/N: 8350 (110v), 8351 (220v) |
43 psi (3 bar) based on water 87 psi (6 bar) based on water |
| Max. Flow Rate: | |
| P/N: 8340 (110v), 8341 (220v) P/N: 8350 (110v), 8351 (220v) |
10 GPM (30,2 LPM) based on water 3 GPM (11,3 LPM) based on water |
| Duty Cycle: | Intermittent (30 Min. Intervals) |
| System Weight: | 54 lbs (24 Kg) |
| Max. Temperature: | 212° F (100° C) |
| Max. Solid Size: | .25" (6 mm) |
| Mechanical Pump Seal: | SiC / Viton® / SiC |
| Metering Principle: | Full Bore Mag Flow Meter |
| Check Valve: | 316 Stainless Steel |
| System Accuracy: | +/– 0.2% of reading (+/–0.5% Repeatability) |
| Conductivity: | System requires 5 micro-semans (µS/cm) of conductivity |
| Pump and meter is constructed with FDA compliant materials; however, the system does not have FDA certification. | |
| ®Viton is a registered trademark of DuPont Dow Elastomers. | |
Model Number
| Package P/N | Motor/ Voltage | Wetted Parts | Max Viscosity CPS (mPAS) | Immersion Legnth |
| Ultra Mag Batch Control System | ||||
| 8340 | 2 HP (1,5 KW) Air /110-120V | SS316, Teflon, SiC | 10,000 | 39" (1000 mm) |
| 8341 | 2 HP (1,5 KW) Air /220-240V | SS316, Teflon, SiC | 10,000 | 39" (1000 mm) |
| 8350 | 2 HP (1,5 KW) Air /110-120V | SS316, Teflon, SiC | 25,000 | 44" (1120 mm) |
| 8351 | 2 HP (1,5 KW) Air /220-240V | SS316, Teflon, SiC | 25,000 | 44" (1120 mm) |
| 8340BL | 2 HP (1,5 KW) Air /110-120V | SS316, Teflon, SiC | 10,000 | 39" (1000 mm) |
| 8341BL | 2 HP (1,5 KW) Air /220-240V | SS316, Teflon, SiC | 10,000 | 39" (1000 mm) |
| 8350BL | 2 HP (1,5 KW) Air /110-120V | SS316, Teflon, SiC | 25,000 | 44" (1120 mm) |
| 8351BL | 2 HP (1,5 KW) Air /220-240V | SS316, Teflon, SiC | 25,000 | 44" (1120 mm) |

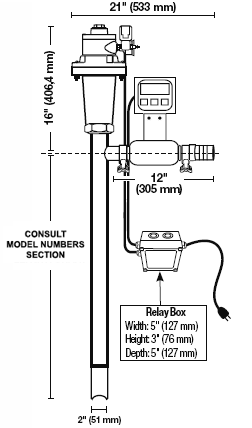

Dimension
