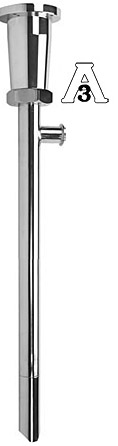

SP-800DD Pump Series Drum Pumps
The SP-800-DD pumps pumps are engineered specifically for transferring viscous materials from drums and tanks commonly found in the Industrial Market place. The progressive cavity design delivers continuous flow of material with little product degradation. Maximum viscosity is 100,000 cps (mPas).
Common Applications
- Pie Fillings
- Chocolate
- Juice Concentrates
- Lotions
- Tomato Paste
- Shampoo
Features
- Hygienic Design
- Easy to Clean & Maintain
- Gentle Product Treatment
- Continuous Flow
Technical Data
| Design: | Progressive Cavity / Positive Displacement |
| Immersion Lengths: | 27" (700mm) 39" (1000mm) 47" (1200mm) |
| Wetted Components: | 316 Stainless Steel, PTFE & White Buna |
| Pump Finish: | 32 Ra |
| Dishcharge: | 1.5" (38 mm) Hose Barb, Optional 1.25" (32 mm) Hose Barb |
| Max. Viscosity: | 100,000cps (mPas) |
| Max. Discharge Pressure: | 174 psi (12 bar) |
| Max. Flow Rate: | 12 GPM (45 LPM) based on water |
| Pump Weight: | 19 lbs (8,7 kg) - 26 lbs (11,8 kg) |
| Max. Temperature: | |
| PTFE Stator | 300º F (148º C) |
| White Buna Stator | 185º F (85º C) |
| Max. Solid Size: | .25" (6 mm) |
| MechanicalSeal: | SiC/Viton®/SiC |
| Mounting Flange: | B14/C140-160 |
| ®Viton is a registered trademark of DuPont Dow Elastomers. | |
