Magnetic Drive Pump Metallic
Magnetic Drive Pump Metallic Sanwa-MMP-MMH
Model: MMP ( MAGPAC series )
Compact and versatile, stainless steel MMP magnetic drive pumps generate less heat making them ideal for transferring voratile fluids. Easy maintenable MMP pumps are also leak free, explosion proof and compatible with existing piping systems. Stocks are available with immediate needs and fast delivery.
MMP regular type :
MMH high-temperature type
MML low-temperature type
DESIGN FEATURES
| Design Pressure | 0.6 MpaG | 87 psiG |
| Suct/Disk Bore | 15x15 mm to 25x20 mm | 1/2"x1/2" to 1"x3/4" |
| Temperature | -30 degC to 150 degC | -22 degF to 301 degF |
| Motor Range | 90 to 550 W | 0.12 to 0.75 HP |
| Material | 316SS | |
| Suct/Disk Connection | PT Threads | NPT Threads |
Magnetic Drive Pump Metallic MP / MH / ML Series
Model: MP (MAGPAC series)
Highly cost saving, Sanwa stainless steel MP magnetic drive pumps are available in High fficiency, Long MTBF, Reliability and Durability with versatile configurations. Stocks are available for immediate needs and quick delivery with competitive pricing.
MP regular type :
MH high-temperature type
ML low-temperature type
DESIGN FEATURES
| Design Pressure | 1.0 MpaG | 145 psiG | |||
| Suct/Disk Bore | 25x20 mm to 50x40 mm | 1"x3/4" to 2"x1-1/2" | |||
| Temperature | -30 degC to 150 degC | -22 degF to 301 degF | |||
| Motor Range | 0.75 to 3.7 KW | 1 to 5 HP | |||
| Material |
|
||||
| Suct/Disk Connection | JIS10k RF | ASME#150LB RF | |||
Magnetic Drive Pump Metallic MPL / MHL / MLL Series

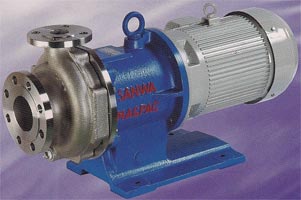

Model: MPL (MAGPAC series)
For maximum safety, efficiency and cost savings, the choice is Model MPL magnetic drive pump. The sealless magnetic drive eliminates leakage of potentially hazardous process fluids, and reduces the number of moving parts in contact with one another. ANSI-B73.3 complied.
MPL - Regular model :
MHL - High Temperature type
DESIGN FEATURES
| Design Pressure | 1.2 MpaG | 174 psiG | ||||
| Suct/Disk Bore | 40x25 mm to 80x50 mm | 1-1/2"x1" to 3"x2" | ||||
| Temperature | -30 degC to 150 degC | -22 degF to 301 degF | ||||
| Motor Range | 3.7 to 15 KW | 5.0 to 20 HP | ||||
| Material |
|
|||||
| Suct/Disk Connection | JIS10k RF | ASME#150LB RF | ||||
Magnetic Drive Pump Metallic Meta Series
Model: MTFO Series Closed - Coupled Type
As one of ISO2858 complied "META" series, the stainless steel MTFO magnetic drive pump is designed with the latest magnet coupling design realizing higher pumping efficiencies. MTFO model is closed coupled design of "META" ISO series.
MET open-coupled type
DESIGN FEATURES
| Design Pressure | 1.0 MpaG | 227 psiG | ||||
| Suct/Disk Bore | 40x25 mm to 200x150 mm | 1-1/2"x1" to 8"x6" | ||||
| Temperature | -100 degC to 260 degC | -147 degF to 500 degF | ||||
| Motor Range | 3.7 to 130 KW | 5.0 to 175 HP | ||||
| Material |
|
|||||
| Suct/Disk Connection | JIS10k RF | ASME#150LB RF | ||||
PERFORMANCE CHARACTERISTICS
| Design Pressure | 50 Hz | 60 Hz | ||
| Max. Total Head | 85 m | 278 ft | 90 m | 295 ft |
| Max. Capacity | 1,400 L/min. | 369 US_GPM | 1,500 L/min. | 396 US_GPM |
Magnetic Drive Pump Metallic Meta Series
Model: MET Series Open - Coupled Type
As one of ISO2858 complied "META" series, the stainless steel MET magnetic drive pump is designed with the latest magnet coupling design realizing higher pumping efficiencies. Conventinal ISO2858 sealed pump can easily be re-configured SEALLESS alone in head-to-head replacement. The model has the widest motor power selection as our standard pump model.
MTF closed coupled type
Sealless RETROFIT!!
Self Flushing & SiC inner bearing
DESIGN FEATURES
| Design Pressure | 1.6 MpaG | 232 psiG | ||||
| Suct/Disk Bore | 40x25 mm to 100x80 mm | 1-1/2"x1" to 4"x3" | ||||
| Temperature | -80 degC to 150 degC | -111 degF to 301 degF | ||||
| Motor Range | 2.2 to 55 KW | 3.0 to 75 HP | ||||
| Material |
|
|||||
| Suct/Disk Connection | JIS10k RF | ASME#150LB RF | ||||
PERFORMANCE CHARACTERISTICS
| Design Pressure | 90 Hz | 60 Hz | ||
| Max. Total Head | 85 m | 275 ft | 130 m | 426 ft |
| Max. Capacity | 1,800 L/min. | 475 US_GPM | 2,000 L/min. | 528 US_GPM |
Magnetic Drive Pump Metallic MXPC Series
Model: MXPC (MAXP Series)
Durable and versatile, stainless steel MXPC magnetic drive pumps are designed in ANSI-B73.3 compliance with open-coupled motor connection. The model is center-lined configuration, and the model is one of our best customary-made players with a wide range of peripherral customary settings.
MAXP regular type
MXPC center-lined type
MXPC full-jacket type
DESIGN FEATURES
| Design Pressure | 1.6 MpaG | 232 psiG | ||||
| Suct/Disk Bore | 40x25 mm to 200x150 mm | 1-1/2"x1" to 8"x6" | ||||
| Temperature | 260 degC to 450 degC | 500 degF to 841 degF | ||||
| Motor Range | 3.7 to 130 W | 5.0 to 175 HP | ||||
| Material |
|
|||||
| Suct/Disk Connection | JIS10k RF | ASME#150LB RF | ||||
PERFORMANCE CHARACTERISTICS
| Design Pressure | 50 Hz | 60 Hz | ||
| Max. Total Head | 90 m | 295 ft | 130 m | 426 ft |
| Max. Capacity | 7,000 L/min. | 1,850 US_GPM | 8000 L/min. | 2,113 US_GPM |
Magnetic Drive Pump Metallic MXPC - 2J Series
Model: MXPC-2J (MAXP series)
Durable and versatile, stainless steel MXPC magnetic drive pumps are designed in ANSI-B73.3 compliance with open-coupled motor connection. The model is center-lined configuration, and the model is one of our best customary-made players with a wide range of peripherral customary settings.
MAXP regular type
MXPC center-lined type
MXPC full-jacket type
DESIGN FEATURES
| Design Pressure | 1.6 MpaG | 232 psiG | ||||
| Suct/Disk Bore | 40x25 mm to 200x150 mm | 1-1/2"x1" to 8"x6" | ||||
| Temperature | 260 degC to 450 degC | 500 degF to 841 degF | ||||
| Motor Range | 3.7 to 130 W | 5.0 to 175 HP | ||||
| Material |
|
|||||
| Suct/Disk Connection | JIS10k RF | ASME#150LB RF | ||||
PERFORMANCE CHARACTERISTICS
| Design Pressure | 50 Hz | 60 Hz | ||
| Max. Total Head | 90 m | 295 ft | 130 m | 426 ft |
| Max. Capacity | 7,000 L/min. | 1,850 US_GPM | 8000 L/min. | 2,113 US_GPM |
Magnetic Drive Pump Metallic MPCP (Inline Pump) Series
Model: MPCP ( MAGPAC series )
With identically sized suction/discharge bore MPCP model is designed for a wide range of in-line pumping needs. Reliable and efficient Sanwa magnet couplings are configured in vertical direction for spacing-saving purposes. The easy installed and maintained model serves well to your sophisticated applications.
DESIGN FEATURES
| Design Pressure | 1.0 MPaG | 145 psiG | ||
| Suct/Disk Bore | 25x25 mm to 80x50 mm | 1"x1" to 3"x2" | ||
| Temperature | -30 degC to 150 degC | -22 degF to 301 degF | ||
| Motor Range | 0.75 to 3.7 W | 1 to 5 HP | ||
| Material |
|
|||
| Suct/Disk Connection | JIS10k RF | ASME#150LB RF | ||
