Batch Control Systems | High Viscosity (Electric)

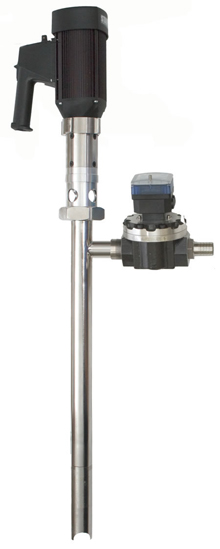

STANDARD’s Batch Control System (BCS) is engineered for precision dosing and filling operations containing viscous materials. The Batch Control System is constructed with robust materials and a choice of motor drives, providing versatility and safety for the most challenging applications. Simply dial in desired volume, press ENTER, and the BCS delivers a preset volume of material virtually hands-free.
Common Applications
- Polymers
- Oils
- Varnishes (Non-Flammable)
- Paints
- Resins
- Petroleum Products
Features
- Oval Gear Design
- Measures: Gallons, Liters, Cubic Meters
- Re-settable Totalizer
- User Friendly “In Field” Calibration
- 7 Pre-Set Batches
- Remote Start Capabilities
- Relay Output Signal
Technical Data
| Wetted Parts: | 316SS / PPS / Aluminum / PTFE | |||
| Motor Drive: | TEFC (IP54) (110–120v / 220–240v) | |||
| Discharge Fitting | 1.5" (38 mm) Hose Barb | |||
| Mechanical Seal | SiC/Viton®/SiC | |||
| Pumping Principle | Progressive Cavity – Positive Displacment | |||
| Max. Discharge Pressure | 87 psi (6 bar) | |||
| Flow Range | 2.6 GPM (9,8 LPM) – 12 GPM (45 LPM) based on water |
|||
| System Weight | 44 lbs (20 kg) | |||
| Immersion Length | 39” (1000 mm) or 47" (1200 mm) | |||
| Maximum Viscosity | 25,000 cps (mPas) |
|||
| Measuring Principle | Oval Gear | |||
| Accuracy | +/- 0.63 % of Full Scale +/- 1% of Reading |
|||
| Maximum Temperature | 176º F (80º C) | |||
| ®Viton is a registered trademark of DuPont Dow Elastomers. | ||||
| Part Number | Motor / Meter Voltage |
Wetted Parts | Max Viscosity CPS (mPas) |
Immersion Length |
| 7610 | TEFC / 110-120V | SS316, Teflon, Aluminum, SiC, PPS |
10,000 cps (mPas) | 39" (1000 mm) |
| 7611 | TEFC / 220-240V | SS316, Teflon, Aluminum, SiC, PPS | 10,000 cps (mPas) | 39" (1000 mm) |
| 7620 | TEFC / 110-120V | SS316, Teflon, Aluminum, SiC, PPS | 10,000 cps (mPas) | 47" (1200 mm) |
| 7621 | TEFC / 220-240V | SS316, Teflon, Aluminum, SiC, PPS | 10,000 cps (mPas) | 47" (1200 mm) |
| 7614 | TEFC / 110-120V | SS316, Teflon, Aluminum, SiC, PPS | 25,000 cps (mPas) | 39" (1000 mm) |
| 7615 | TEFC / 220-240V | SS316, Teflon, Aluminum, SiC, PPS | 25,000 cps (mPas) | 39" (1000 mm) |
| 7624 | TEFC / 110-120V | SS316, Teflon, Aluminum, SiC, PPS | 25,000 cps (mPas) | 47" (1200 mm) |
| 7625 | TEFC / 220-240V | SS316, Teflon, Aluminum, SiC, PPS | 25,000 cps (mPas) | 47" (1200 mm) |

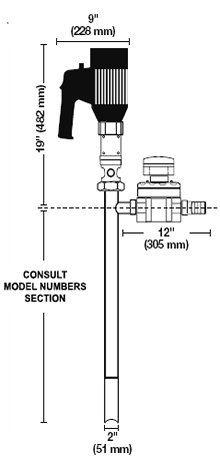

Dimensions
