Batch Control Systems | High Viscosity (Air)

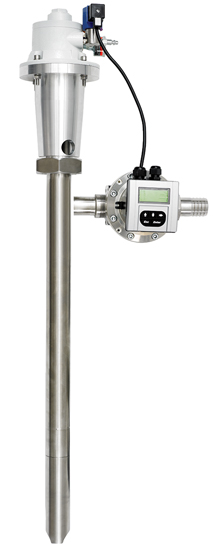

STANDARD’s Batch Control System (BCS) is engineered for precision dosing and filling operations containing viscous materials. The air systems are ideal for high frequency, continuous duty applications. The Batch Control System is constructed with robust materials and a choice of motor drives, providing versatility and safety for the most challenging applications. Simply dial in desired volume, press ENTER, and the BCS delivers a preset volume of material virtually hands-free.
Common Applications
- Polymers
- Oils
- Varnishes (Non-Flammable)
- Paints
- Resins
- Petroleum Products
Features
- Oval Gear Design
- Measures: Gallons, Liters, Cubic Meters
- Re-settable Totalizer
- User Friendly “In Field” Calibration
- 7 Pre-Set Batches
- Remote Start Capabilities
- Relay Output Signal
Technical Data
| Wetted Parts: | 316SS / PPS / Aluminum / PTFE |
| Motor Drive: | TEFC (IP54) (110–120v / 220–240v) |
| Discharge Fitting | 1.5" (38 mm) Hose Barb |
| Mechanical Seal | SiC/Viton®/SiC |
| Pumping Principle | Progressive Cavity – Positive Displacment |
| Max. Discharge Pressure | 87 psi (6 bar) |
| Flow Range | 2.6 GPM (9,8 LPM) – 12 GPM (45 LPM) based on water |
| System Weight | 44 lbs (20 kg) |
| Immersion Length | 39” (1000 mm) or 47" (1200 mm) |
| Maximum Viscosity | 25,000 cps (mPas) |
| Measuring Principle | Oval Gear |
| Accuracy | +/- 0.63 % of Full Scale +/- 1% of Reading |
| Maximum Temperature | 176º F (80º C) |
| ®Viton is a registered trademark of DuPont Dow Elastomers. | |
Model Numbers
| Part Number | Motor / Meter Voltage |
Wetted Parts | Max Viscosity CPS (mPas) |
Immersion Length |
| 7630 | 2 HP (1,5 KW) Air/110-120V | SS316, Teflon, Aluminum, SiC, PPS |
10,000 cps (mPas) | 39" (1000 mm) |
| 7631 | 2 HP (1,5 KW) Air / 220-240V | SS316, Teflon, Aluminum, SiC, PPS | 10,000 cps (mPas) | 39" (1000 mm) |
| 7640 | 2 HP (1,5 KW) Air/110-120V | SS316, Teflon, Aluminum, SiC, PPS | 10,000 cps (mPas) | 47" (1200 mm) |
| 7641 | 2 HP (1,5 KW) Air / 220-240V | SS316, Teflon, Aluminum, SiC, PPS | 10,000 cps (mPas) | 47" (1200 mm) |
| 7634 | 2 HP (1,5 KW) Air/110-120V | SS316, Teflon, Aluminum, SiC, PPS | 25,000 cps (mPas) | 39" (1000 mm) |
| 7635 | 2 HP (1,5 KW) Air / 220-240V | SS316, Teflon, Aluminum, SiC, PPS | 25,000 cps (mPas) | 39" (1000 mm) |
| 7644 | 2 HP (1,5 KW) Air/110-120V | SS316, Teflon, Aluminum, SiC, PPS | 25,000 cps (mPas) | 47" (1200 mm) |
| 7645 | 2 HP (1,5 KW) Air / 220-240V | SS316, Teflon, Aluminum, SiC, PPS | 25,000 cps (mPas) | 47" (1200 mm) |

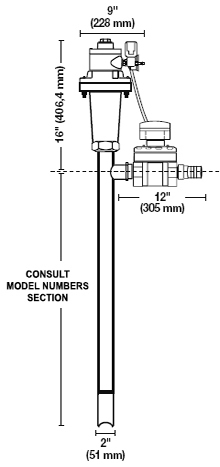

Dimensions
